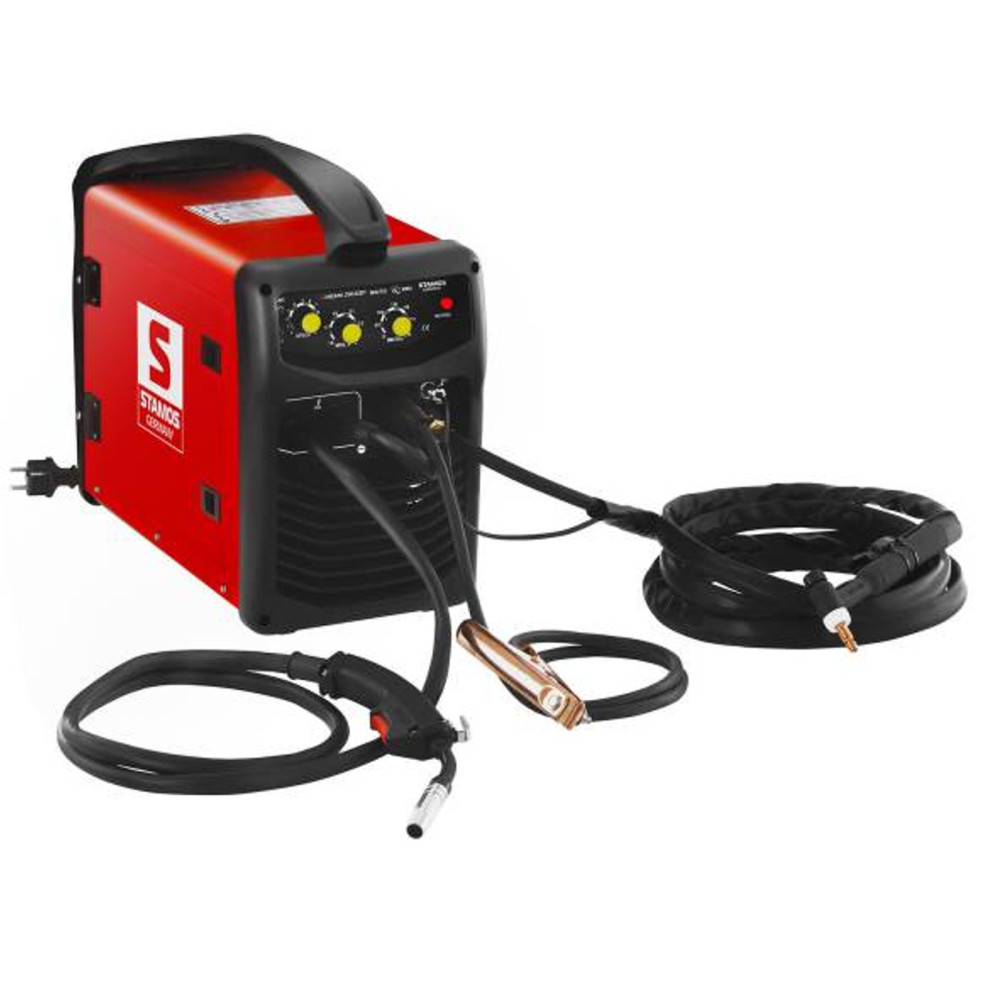

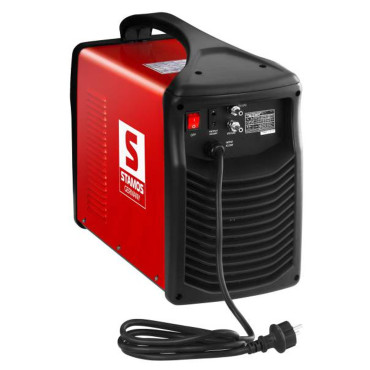

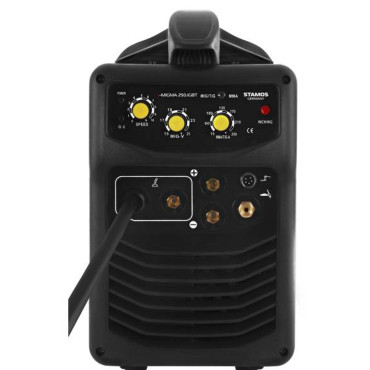

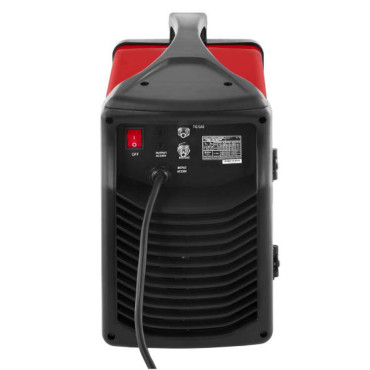

Manufacturer name:S-MIGMA 250.IGBT Multifunctional welding machine from Stamos Germany It will allow you to process metal elements thanks to the options in modes MIG, MAG, FCAW, TIG and MMA. S-MIGMA 250.IGBT, thanks Infinitely variable welding current adjustment (max 250 a) It enables precise determination of the right value, which increases the convenience of work. In the welding machine used modern IGBT inverter technology. It guarantees High degree of failureand also Efficient work and quick switching between functions. This is the merit of a three-way semiconductor element that it is resistant to short circuit. Product features:
- Versatility - Possibility of welding in MIG, MAG, FCAW, TIG and MMA modes,
- Practicality - suitable for processing elements made of various weldable metals,
- Performance - the use of modern IGBT technology guarantees precise work and protection against short circuits,
- Convenience - stepless knobs allow for precise setting of inductance, welding current and wire feed rate,
- Mobility - a comfortable handle and a small size facilitate the transfer of welders,
Stamos devices were made according to strict European standards and passed tests for compliance with CE and RoHS. This guarantees a long service life and the high quality of the device. Technical parameters:
- Model - S-MIGMA 250.IGBT
- catalog number - 2208
- article - New
- power supply - 230 V / 50 Hz
- Rated entrance current - MIG 29.5 A / MMA 33 A / TIG 22.5 A
- Maximum entrance current - MIG 38 A / MMA 43 A / TIG 29 A
- tension of idling - 62 V
- MIG current - 50 - 250 A
- MMA current - 10 - 250 A
- TIG current - 10 - 250 A
- Welding current in a 60% work cycle - 250 A (MIG / MMA / TIG)
- Welding current in the 100% work cycle - 193 A (MIG / MMA / TIG)
- Work cycle - 60%
- Welding thickness - 0.5 - 10 mm
- TIG electrode diameter - 0.5 - 4 mm
- MMA electrode diameter - 1.6 - 5 mm
- Cooling - Fan
- Cooling the handle - Gas
- Hot Start - So
- Wire feeder - 2.5 - 13 m / min
- Cable with MMA handle - 1.4 m
- grounding wire - 1.3 m
- Cable with a MIG handle - 1.75 m
- Cable with TIG handle - 3.7 m
- Security class - Ip21
- Insulation class - F
- Dimensions (DXSXW) - 54.00 x 24.00 x 41.00 cm
- weight - 15.00 kg
- Dimensions of shipment (DXSXW) - 64,00 x 34.50 x 44.50 cm
- shipping weight - 27.05 kg
Working methods:
MiG / mag - using the MIG method can be comfortably burned stainless steel, tin, copper and other colored metals, in turn during the welding of low-alloy steel, high-alloy or structural steels. Magic mode will be checked
MMA (Electrode wrapped) - will work inside and outside the premises. Does not require a shielding gas and works during the welding of thin materials (from a thickness of 1.5 mm), e.g. copper, iron, nickel, aluminum or alloys m.in. Steel and cast iron. The welds made with this method have good operational and mechanical values.
TIG - It works well with combining metals and their alloys, e.g. copper, aluminum, magnesium, nickel, titanium, steel and many others. It will be particularly well suited when processing very thin materials (with a thickness of 0.5 mm). This method can be used in every position - horizontal, vertical, flat and above head, and its effect is clean and precise weld, which is not corrosion.
FCAW (arc welding with core wire) - Methods that do not require the use of a shielding gas. Thanks to this, it will work during outdoor work in windy places. This mode is characterized by a high depth of blend.
Features:
- Hot start consists in a temporary increase in the welding current during the arc,
- Spatter Makes the device automatically set inductance, which allows you to weld stable.
