Digital welder for Aluminum Entrix TIG HF AC / DC Pulse MMA 200A 230V

€737.16
Tax included
Payment
discover visa googlewallet paypal mastercard americanexpress
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

Manufacturer's code: 10021429
Food for the company's aluminum Stamos, This is an ideal steel device, stainless steel, copper, as well as for aluminum thanks to TIG AC and pulsation functions. Has a digital control panel Led with buttons and knob for precise welding results. The device operates on a variable current (AC) or permanent current (DC). Welding thickness 0.5-5 mm. Modern inverter IGBT It allows you to quickly switch between welding methods TIG DC, TIG AC and MMA. Thanks to the current to 200 a Most metals can be easily welded - regardless of the conditions. The pulsation function allows you to get optimal welding results. Arc stabilization is possible even in difficult conditions, thanks to the pulse frequency adjustment to 200 Hz. There are numerous pulsation function parameters, such as the initial, basic or final current, set to the workpiece with the knob. Ergonomically shaped welding handle allows you to work in different positions, both vertically, level and on your head. The welder makes high quality welds with a smaller number of sparks or spatter. A modern IGBT inverter allows you to easily change all parameters. Regardless of whether it is switching from AC to DC or a 2- or 4-tact operation. The arc lights up reliably thanks to high frequency. For electrode welding, use the attached MMA holder for electrodes with a diameter 1.6-4 mm. The best results can be achieved thanks to the functions Hot start and Arc Force. The Hot Start function provides a short-term inculcement of the welding current after starting the welding process, so you can work reliably and clean from the first moment. Thanks to the ARC Force function you can adjust the bow to adjust it to the welded material and the desired weld density. For outdoor welding, even with a strong wind, use the MMA method. With a constant current, a very good welding results of various metals, such as steel, iron, cast iron, nickel or copper can be achieved.
Product features:
  • - a transparent, digital control panel with buttons and a knob for precise welding results,
  • - ideal for steel, stainless steel, copper, as well as for aluminum thanks to TIG AC and pulsation function,
  • - The practical memory function saves previously set values,
  • - modern IGBT inverter with 2T / 4T and high frequency ignition function,
  • - Effective MMA welding using Hot Start and Arc Force.

Technical parameters:
  • - catalog number - 10021429
  • - article - New
  • - Model - Entrix 220m
  • - compliance with the standard - En60974-1
  • - 2/4 tact - So
  • - AC Balance parameter - Clean Scope [%] - 10-90
  • - AC Balance parameter - Clean Width [%] - 10-90
  • - Cooling - Fan
  • - Current falling time (Down Slope) [s] - 0-25
  • - Cooling the burner - Gas
  • - Arc-Force - So
  • - AC current balance [%] - 10 - 90
  • - MMA electrode diameter [mm] - 1.6-4
  • - electrode diameter (TIG) [mm] - 1.2-2
  • - entrance power [kVA] - 5.4
  • - grounding wire [m] - 3
  • - Gas outflow time from welding [s] - 0-1
  • - Hot Start - So
  • - Maximum entrance current [A] - TIG: 28 MMA: 43
  • - Maximum entrance current [A] - 9,6
  • - Power cord [m] - 2
  • - Power factor - 0,73
  • - maximum welding current [A] - 200
  • - Rated entrance current [A] - TIG: 17 MMA: 27
  • - Pulse function - So
  • - ignition TIG - Hf
  • - Tension [V] - 220
  • - MMA cable [m] - 3
  • - MMA welding current [A] - 30-200
  • - Open circuit voltage [V] - 62
  • - pulse frequency (AC) [Hz] - 0,5-200
  • - pulse frequency (DC) [Hz] - 0,5-200
  • - TIG DC welding current [A] - 10-200
  • - Current growth time (UP slope) [s] - 1-15
  • - TIG AC welding current [A] - 10-200
  • - TIG AC - So
  • - TIG DC - So
  • - welding thickness [mm] - 0,5-5
  • - TIG cable [m] - 4
  • - Cycle of work [%] - 60

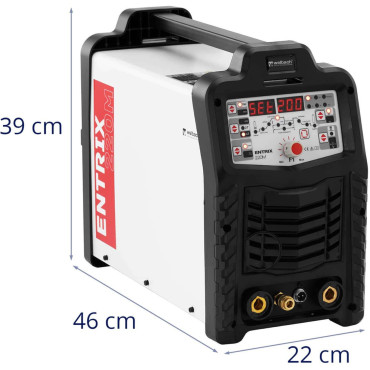

  • - Dimensions (DXSXW) - 46 x 22 x 39 cm
  • - weight - 19.3 kg
  • - Dimensions of shipment (DXSXW) - 58 x 50 x 33 cm
  • - shipping weight - 20.9 kg

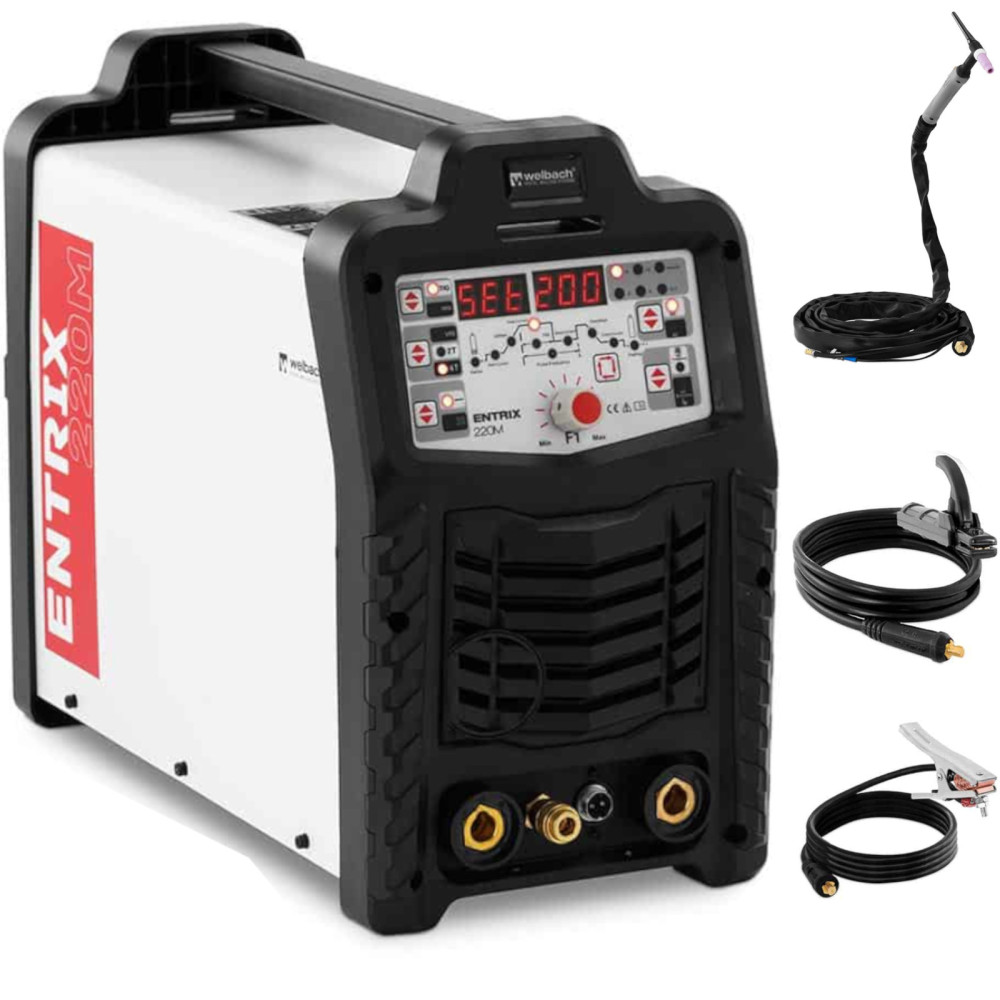

Included:
  • - Aluminum welder
  • - TIG WP26 welding holder with a wiring package (4 m)
  • - Earthing clamp with a cable (3 m)
  • - electrode handle with cable (3 m)
