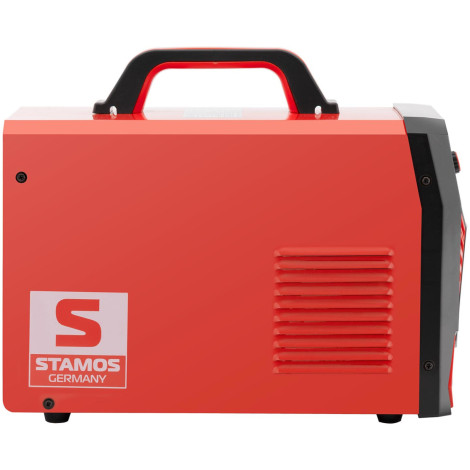

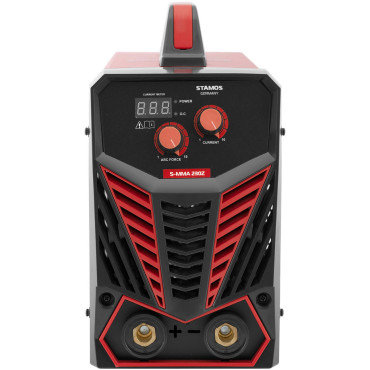

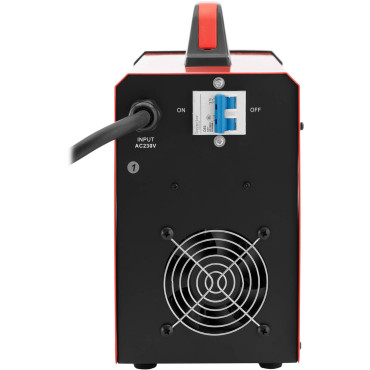

MMA IGBT inverter welder with HOT Start Arc Force 220 A functions

Manufacturer's code: 10021385
Brand Stamos Germany This handy device for welding the electrode wraped with wires with a length of 8 m. Welding current is selected in the range 20-220 A Use the knob. To obtain a 100% operating cycle, adjust the welding current below 110 A. Readable LED display Allows you to check the set values. Long, 8 m wires Welding and grounding ensure maximum freedom of movement. To quickly perform a clean and strong weld with a reduced splash, use acid or alkaline electrodes with a diameter of 1.6-5.0 mm. The device is intended for welds with a thickness of up to 20 mm. Open circuit voltage 61 V and function Hot start They allow you to easily make a bow and achieve optimal welding results. Arc Force function Allows you to adjust the arc to the welded material to get a weld with the desired density. Technology IGBT It is characterized by increased efficiency. The equipment reliably compensates for the fluctuations in network voltage by +/- 10%. Because the MMA welding is not required, a shielding gas, can be effectively welded even in unfavorable conditions. MMA welder combines materials such as: steel, iron, cast iron, nickel or copper. Fan Cooling the device protecting them from overheating. The housing and front plastic cover are resistant to shocks and vibrations. Isolation, anti-static and low-coastal design ensure safe operation for many years.
Product features:

• - Compact design and a strong IGBT inverter,
• - Freedom of movement thanks to wire with MMA welding and earthing handle with a length of 8 m,
• - welding current from 20 to 220 A and 100% work cycle at 110 A,
• - Clean welding effects thanks to hot start, Arc Force and stable arch,
• - Infinuous control and LED display.

Technical parameters:

• - Model - SEC-mma230z
• - catalog number - 10021385
• - article - New
• - Tension [V] - 230
• - Cooling housing - Fan
• - Cycle of work [%] - 25
• - MMA cable [m] - 8
• - Power cord [m] - 2,3
• - Nominal input power [kVA] - 10,8
• - mass cable [m] - 8
• - Power factor - 0,73
• - Maximum entry power [kVA] - 10,8
• - Insulation class - F
• - Maximum entrance current [A] - 46,3
• - weldable thickness [mm] - 20
• - Max. Welding current [A] - 220
• - Min. Welding current [A] - 20
• - IP protection degree - Ip21s
• - Rated entrance current [A] - 23,2
• - tension of idling [V] - 61
• - Welding current in a 60% work cycle [A] - 141
• - Welding current in the 100% work cycle [A] - 110
• - Dimensions (DXSXW) [cm] - 38 x 15.5 x 32
• - weight [kg] - 5,9
• - Dimensions of shipment (DXSXW) [cm] - 46.5 x 30 x 36
• - shipping weight [kg] - 10,6

Included:

• - welder
• - Welding holder with a wire (8 m)
• - Earthing clamp with a wire (8 m)
• - User manual
