MIG / MAG MURFUNICT CONSTRUCTION TIG MMA FCAW 300 A 400 V

Manufacturer's code: 10021084

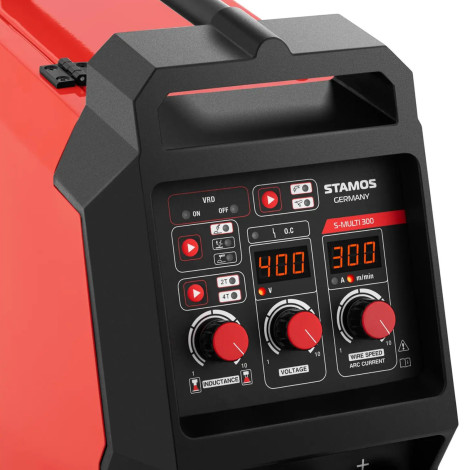

Multifunctional welder brand Stamos Germany It allows you to easily choose the right welding technique for a given project. There are four modes in one device to choose from: MIG / MAG, TIG-Liffarc, MMA and FCAW. With or without shielding gas. The truck significantly facilitates the transport of equipment and over the rear wheels there is enough space for a gas bottle, which can be easily protected by means of a bracket and two chains. Clear Control panel with two displays It allows you to constrate welding parameters in this welding current up to 300 a. A large knob easily handle even in welding gloves. The following settings are available: welding method, electricity, voltage (MIG), wire feeding speed from 2.5 to 24 m / min, inductance and 2T or 4T modes. FcAW welding consists in creating welds using welding wire - without additional gas. Thanks to this, this process will work perfectly for minor car repairs and metal works outdoors. TIG method This model uses Liffarc to activate the arc. As a result, sensitive electronic devices located nearby, such as cell phones, computers or control systems, will not be exposed to external factors. Do you want to burn outside and with a strong wind? In that case, choose Welding with an electric arc (MMA). This method works without additional gas and provides good effects. VDR function Provides greater safety during MMA welding, especially in a humid environment. The ARC Force and Anti Stick functions will automatically turn on and allow comfortable welding.
Product features:

• - Ergonomic rotary knobs allow precisely set all parameters, even in welding gloves,
• - Welding with FCAW, MIG / MAG, TIG Liffarc and MMA with an intensity up to 300 A,
• - two LED displays will provide a direct preview of all settings,
• - Greater MMA security - with VRD, Arc Force and Anti Stick functions,
• - Four wheels and an integrated gas bottle handle for easy transport.

Technical parameters:

• - catalog number - 10021084
• - article - New
• - Model - S-Multi 300
• - 2/4 tact - So
• - Anti Stick - So
• - Arc-Force - So
• - water cooling - Not
• - Cycle of work [%] - 60
• - Gas outflow time [s] - So
• - frequency [Hz] - 50
• - Flux wire - So
• - Gas Electrofief - So
• - functions - MMA / TIG / MIG / MAG / FCAW
• - Hot Start - Not
• - MMA cable - 3 m
• - Insulation class - F
• - IEC protective class - Ip21
• - Lift Tig - -
• - Maximum welded thickness [mm] - 14
• - Maximum diameter of wire spool - 200 mm
• - maximum welding current [A] - 300
• - Maximum entrance current [A] - MIG: 15,9 / MMA: 17.6 / TIG: 12
• - Maximum entrance current [A] - MIG: 15,792 / MMA: 16,687 / TIG: 11,919
• - Minimal welding current [A] - 15
• - entrance power [kVA] - MIG: 10,967 / MMA: 12,150 / TIG: 8,387
• - Tension [V] - 400
• - welding tension [V] -16.5-29
• - MMA welding current [A] - 25 - 300
• - TIG welding current [A] - 15 - 300
• - MIG / MAG cable - 3 m
• - Plasma cable - -
• - TIG cable - 4 m
• - grounding wire - 3 m
• - efficiency [%] - 85
• - wire speed [m/min] - 2-18
• - wire diameter [mm] - 1 / 1.2
• - Power factor - 0,93
• - ignition Plasma - -
• - ignition TIG - Lift
• - compliance with the standard - -
• - Rated entrance current [A] - MIG: 12,3 / MMA: 13.6 / TIG: 9.3
• - Air consumption [l/min] - -
• - weight - 44.75 kg
• - shipping weight - 61.5 kg
• - Dimensions (DXSXW) - 91 x 51 x 76 cm
• - Dimensions of shipment (DXSXW) - 94 x 80 x 45 cm

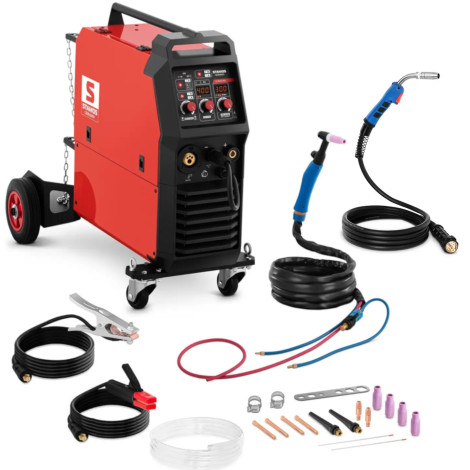

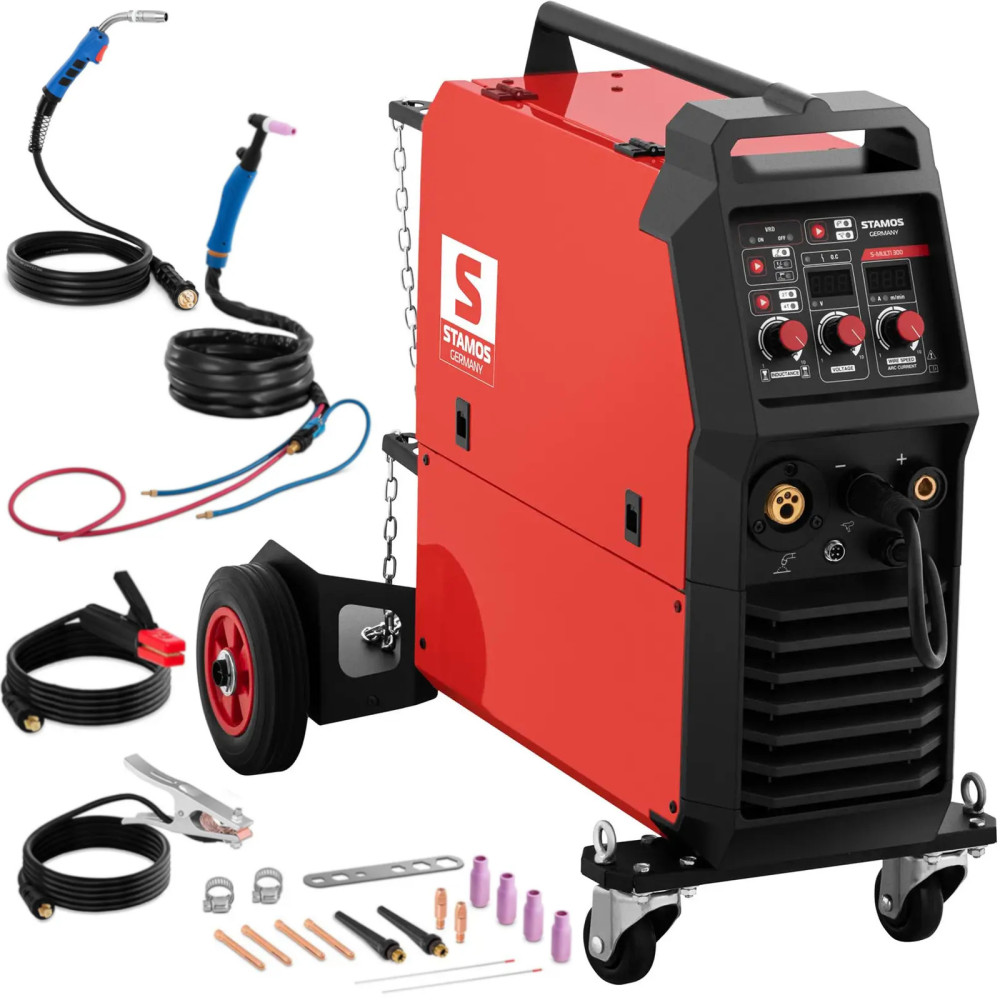

Included:

• - Multifunctional welder
• - Trolley on four wheels
• - Gas cable (3 m)
• - MIG burner with a wire (3 m)
• - TIG burner with a wire (4 m)
• - electrode handle with cable (3 m)
• - Earthing clamp with a cable (3 m)
• - 2 clamping bands Ø14.7 mm
• - Universal key
• - 2 chains
• - 2 MIG sleeves (1 mm / 1.2 mm)
• - Wolfram electrode
• - ceramic nozzle (5, 6, 7)
• - TIG sleeves (1.6 / 2.4 / 3.2 mm)
• - long overlay
• - Bag for accessories
• - Mounting accessories (screws)
• - No plug in the set
