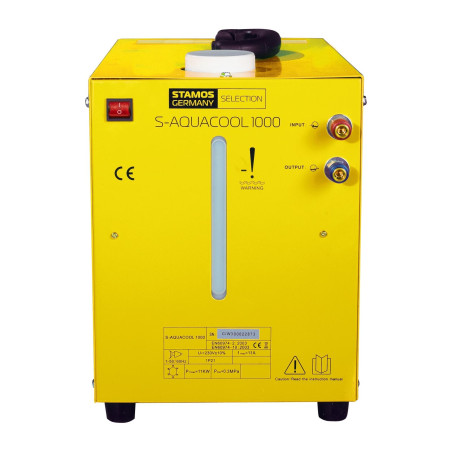

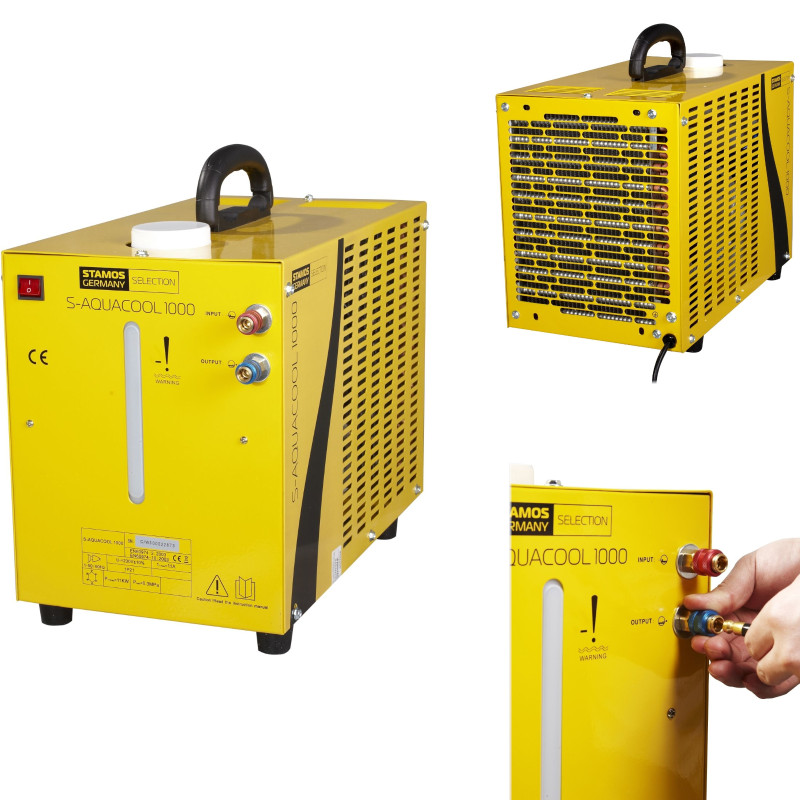

Water cooler welding S-AQUACOOL 1000

Manufacturer name: S-Aquacool 1000
Calling above 150 A, especially in longer working cycles, requires a suitable cooling of the handle. Many welders, although they are equipped with a suitable connection, does not have a suitable radiator in the set, which can not use the entire potential of the device. The Water Cooler of the German brand Stamos Selection not only allows you to achieve full capacity of welding machines, but also prolongs its service life. A functional water circuit and effective heat dissipation from the handle has been achieved by using an efficient pump, fan, copper coil and aluminum radiator in the device.
Features and functions:

• - Performance - a cooling system based on a liquid, aluminum radiator and a fan,
• - Mobility - compact dimensions, a small weight and comfortable handle facilitate the transfer of the device,
• - Strength - the device was created for work in factories or steelworks, so its design is very resistant to mechanical damage,

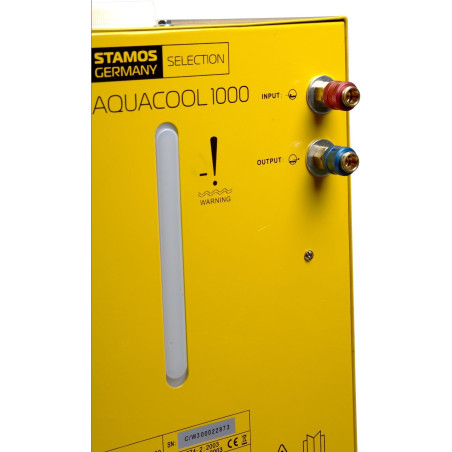

• - Convenience - a large liquid tank (9 L) of plastic, transparent scale and two-color quick connectors increase the comfort of work,
• - Versatility - It can work with Mig MAG welders (microomates) and TIG.

To protect the device from Rust, it is recommended to use distilled water or coolant.
Technical parameters:

• - Model - S-Aquacool 1000
• - catalog number - 2714
• - article - New
• - power - 260 W
• - tension - 230 V
• - tank capacity - 9 L
• - flow - 8.5 l / min
• - Range of working temperature - from 20 to 60DEG C
• - Cooling efficiency - 1600 W (1 l / min)
• - Max. Pressure - 3 bar
• - Protection class - Ip21
• - Dimensions (DXSXW) - 49 x 25 x 40 cm
• - weight - 13.5 kg
• - Dimensions of shipment (DXSXW) - 60 x 38 x 44 cm
• - shipping weight - 15.2 kg

Included:

• - quick couplings for cooling system wires (2 pcs),
• - stainless steel clamping clamps (2 pcs),
• - User manual in Polish.
