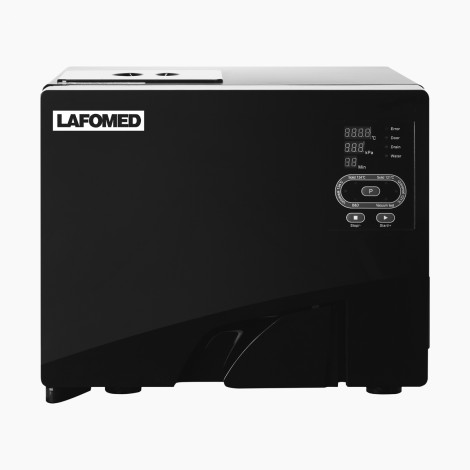

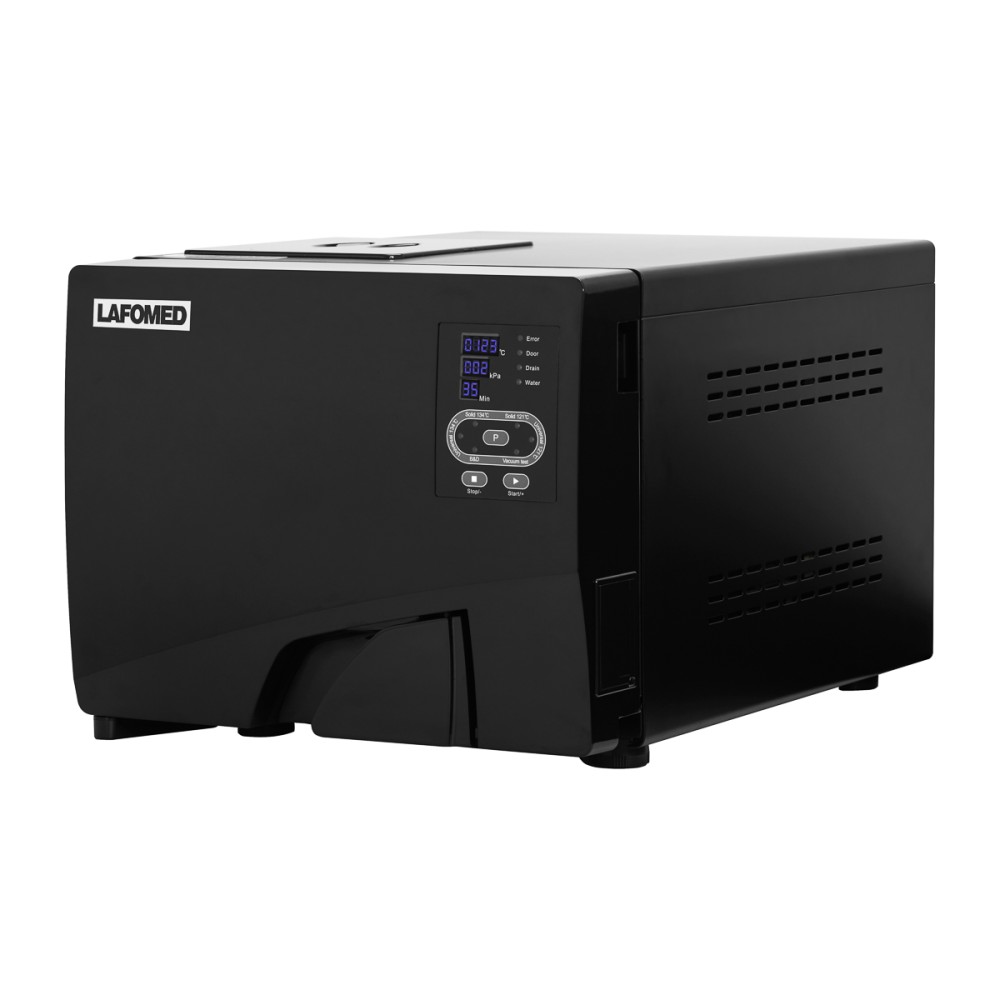

LAFOMED AUTOCLAVE STANDARD LINE LFSS12AA WITH 12 L PRINTER CL. B MEDICAL BLAC

The LAFOMED AUTOCLAVE STANDARD LINE LFSS12AA is a class B medical autoclave with a 12-litre chamber designed for sterilising both medical and non-medical instruments.

Sterilisation Programs and Efficiency

This class B autoclave provides six fully automatic programs: four sterilisation cycles at 121°C and 134°C for solid and universal (packed and unpacked) loads, plus two test programs including Bowie-Dick and vacuum tests.

The shortest sterilisation cycle is 8 minutes at 134°C for solid loads, which includes drying, allowing for efficient operation.

• 121°C Solid (Unpacked) – 24 minutes total cycle time
• 121°C Universal (Packed and Unpacked) – 35 minutes total
• 134°C Solid (Unpacked) – 8 minutes total
• 134°C Universal (Packed and Unpacked) – 19 minutes total
• Bowie-Dick Test – 4 minutes
• Vacuum Test – 15 minutes

Design and Functionality

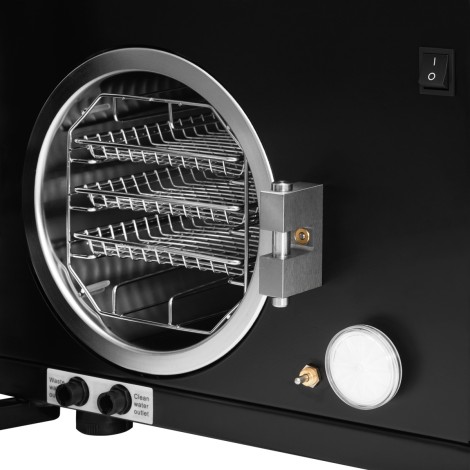

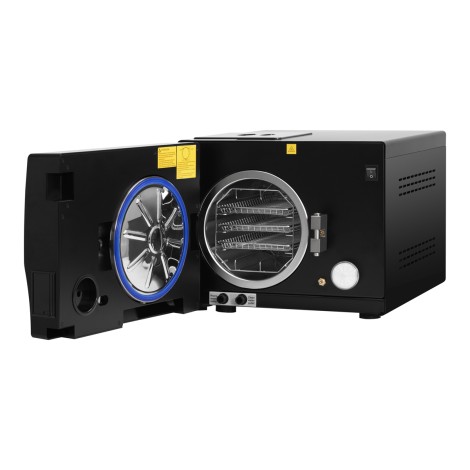

The autoclave features a 20 cm diameter, 33 cm deep chamber made from 304-grade stainless steel for durability and hygiene compliance.

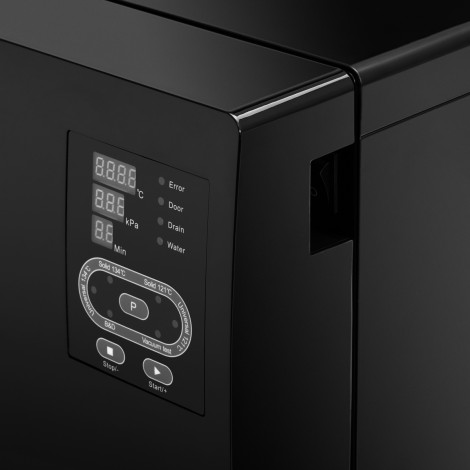

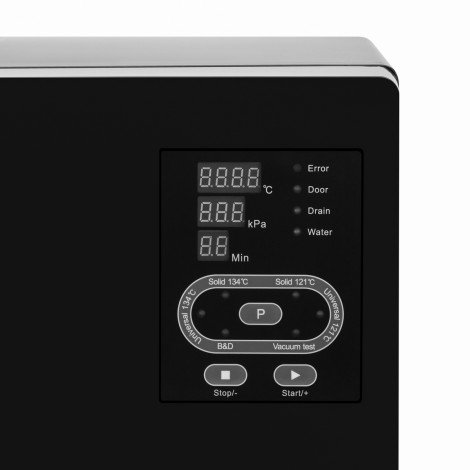

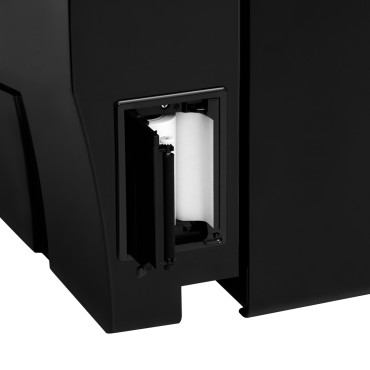

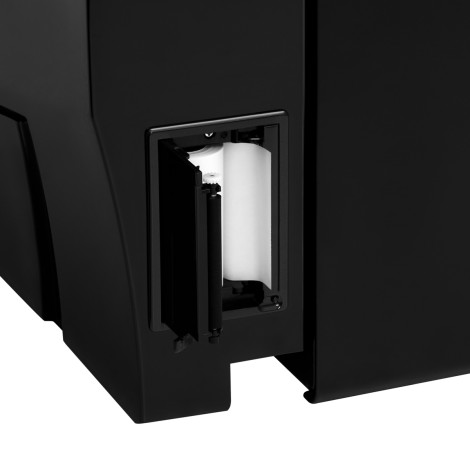

It includes a built-in thermal printer that does not require ink, an LED display indicating time, temperature, and pressure, and a USB port for saving cycle data externally.

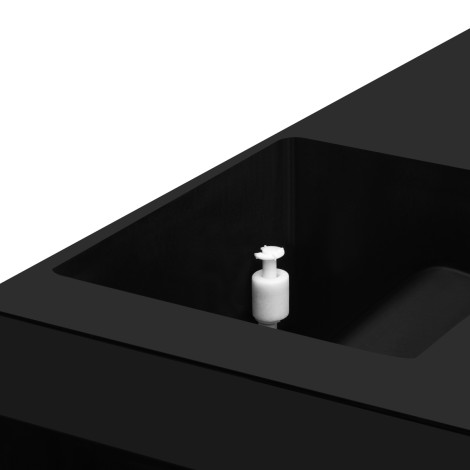

Water management is supported by built-in clean water (distilled or deionised) and used water tanks with front drainage access.

A self-diagnosis system and a double door lock mechanism provide protection and safety during operation.

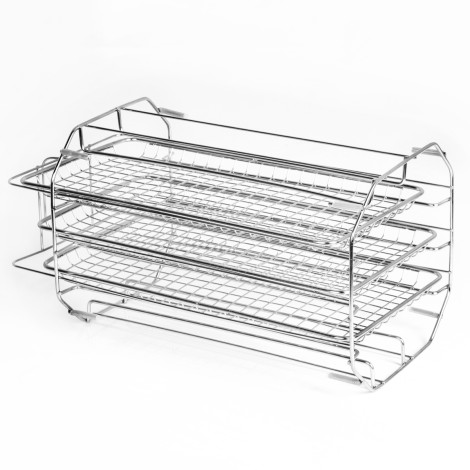

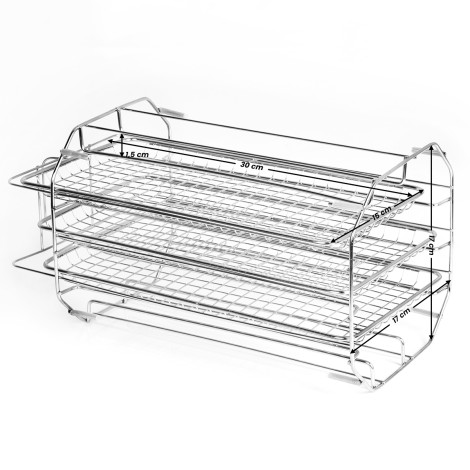

• Capacity for three trays measuring 14 cm x 26 cm x 2 cm each
• Built-in clean and used water tanks with frontal drainage
• Intuitive LED display and status indicator lights
• Self-diagnosis system to help prevent damage
• Double mechanical and electronic door lock

Compliance, Warranty and Certifications

The LFSS12AA autoclave meets CE 1023, ISO 13485, and European Standard BS EN 13060:2014 + A1:2018 standards, ensuring compliance with sanitary and epidemiological requirements.

It comes with a 24-month warranty, extendable by 12 months upon a paid technical inspection at an authorised service centre before the basic warranty expires.

A technical passport is included for documentation and servicing purposes.

• Power: 1.95 KW, Voltage: 230 V, Frequency: 50/60 Hz
• Maximum working temperature: 137 ℃, Maximum pressure: 240 kPa
• Device dimensions: 64 cm x 43.5 cm x 36 cm; Box dimensions: 74 cm x 52 cm x 43 cm
• Net weight: 51 kg; Weight with packaging: 59 kg

Technical specifications

• Model: LFSS12AA
• Brand: LAFOMED
• Medical Class: B
• Chamber Capacity: 12 L
• Chamber Material: 304-grade stainless steel
• Chamber Dimensions: 20 cm diameter x 33 cm depth
• Number of Trays: 3
• Tray Dimensions: 14 cm x 26 cm x 2 cm
• Power: 1.95 KW
• Voltage: 230 V
• Frequency: 50/60 Hz
• Maximum Temperature: 137 ℃
• Maximum Working Pressure: 240 kPa
• Safety Valve Opening Pressure: 0.24 - 0.26 MPa
• Dimensions (WxDxH): 64 cm x 43.5 cm x 36 cm
• Weight (net): 51 kg
• Weight with packaging: 59 kg
• Sterilisation Programs: 6 (4 sterilisation, 2 test)
• Display: LED
• Printer Type: Built-in thermal printer
• Additional Features: USB port, self-diagnosis system, double door lock, built-in water tanks
• Certifications: CE 1023, ISO 13485, BS EN 13060:2014 + A1:2018
