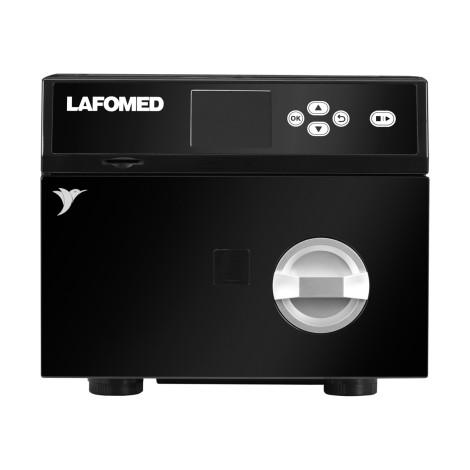

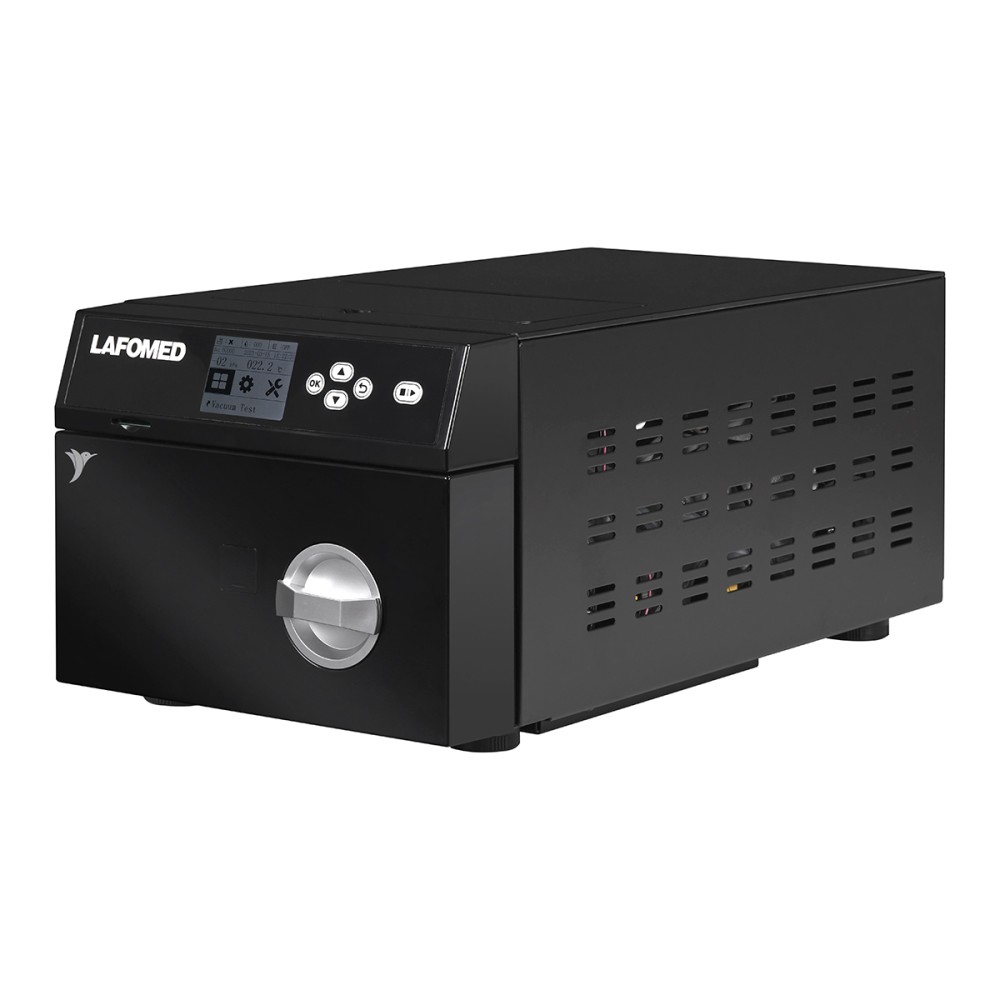

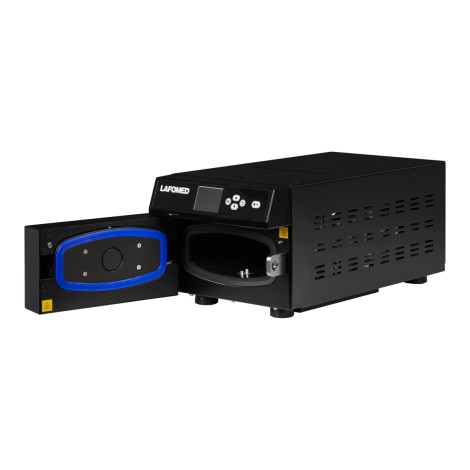

Lafomed Autoclave LFSS03AA LCD 3 L Class B Medical black

The Lafomed Autoclave LFSS03AA LCD 3 L Class B Medical black is a professional sterilisation device suitable for medical and non-medical environments such as hospitals, dentistry, ophthalmology, research institutes, beauty salons, tattoo studios, and aesthetic medicine facilities.

This 3-litre Class B autoclave provides effective sterilisation of both unpackaged and packaged instruments with a durable stainless steel chamber and user-friendly controls.

Class B Sterilisation with Multiple Programs

The Lafomed LFSS03AA is a medical Class B autoclave that sterilises unpackaged and packaged items including solid, textile, and hollow instruments. It has seven fully automatic programs: four sterilisation cycles (including fast and universal at 134°C and 121°C, plus a quick 6-minute cycle for unpackaged solid instruments), two test programs (Bowie & Dick and vacuum test), and a drying program. Cycle times range from 6 to 28 minutes after heating, with drying times adjustable from 1 to 25 minutes.

• Fast 134°C sterilisation: 8 minutes total for packaged and unpackaged solid, textile, and hollow instruments.
• Universal 134°C sterilisation: 10 minutes total for packaged and unpackaged items.
• Universal 121°C sterilisation: 28 minutes total for packaged and unpackaged items.
• Solid 134°C sterilisation: 6 minutes total for unpackaged instruments (immediate use).

User-friendly Design and Safety Features

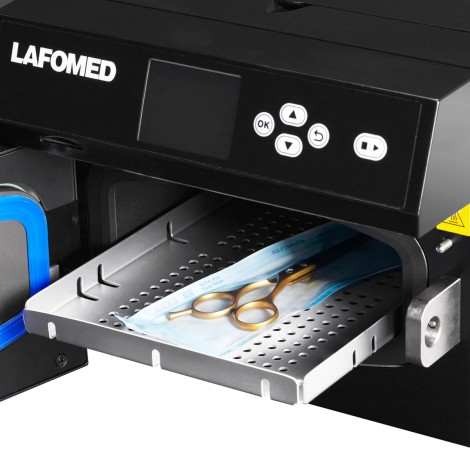

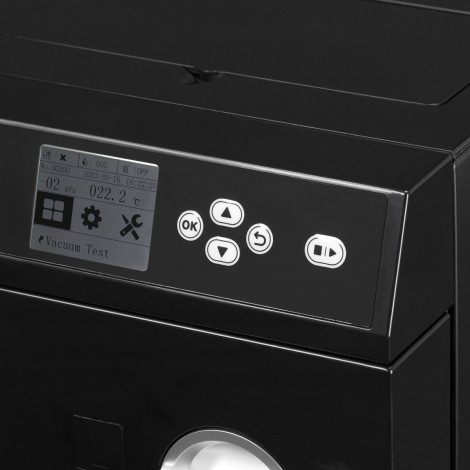

The autoclave features an LCD display showing time, temperature, pressure, and cycle progress, with an English-language interface. It has a built-in 1-litre distilled water tank required for sterilisation; however, used water must be collected externally. Preheating and keep-warm functions reduce waiting times between cycles. Cycle data can be saved via an SD memory card slot.

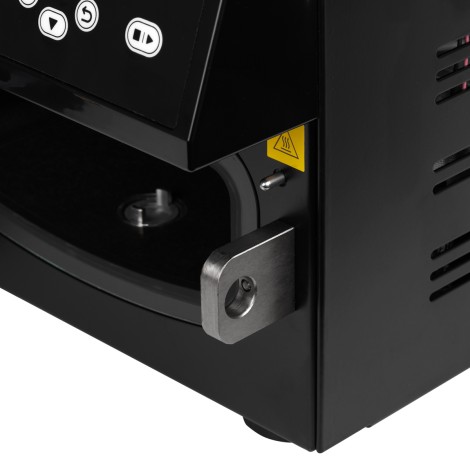

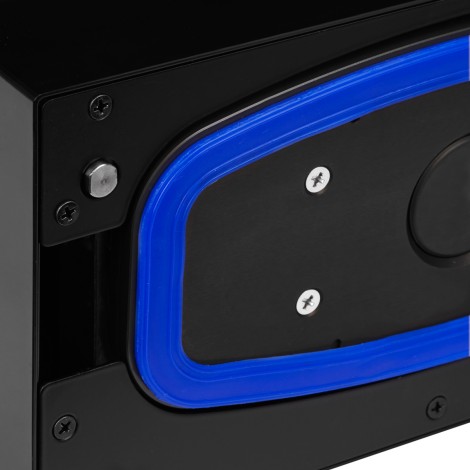

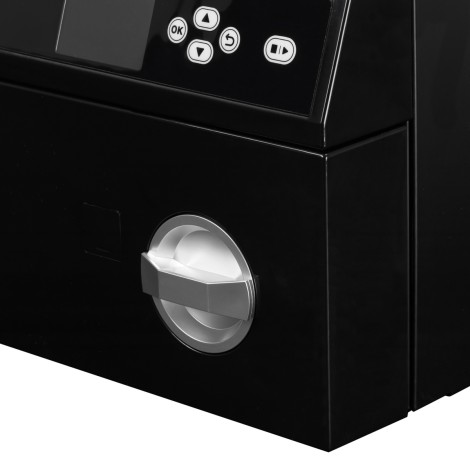

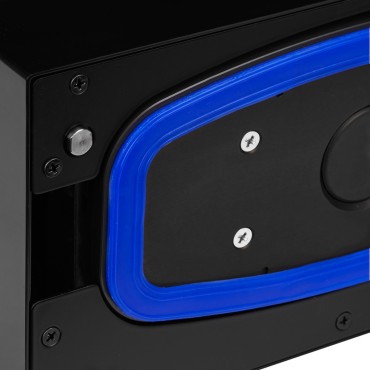

Safety elements include a self-diagnosis system, a water quality sensor to monitor sterilisation safety, and a double door lock with mechanical and electronic security. The 304-grade stainless steel chamber measures 7.5 x 19 x 32 cm, ensuring durability and hygiene.

• LCD display with cycle parameters.
• SD memory card slot for data storage.

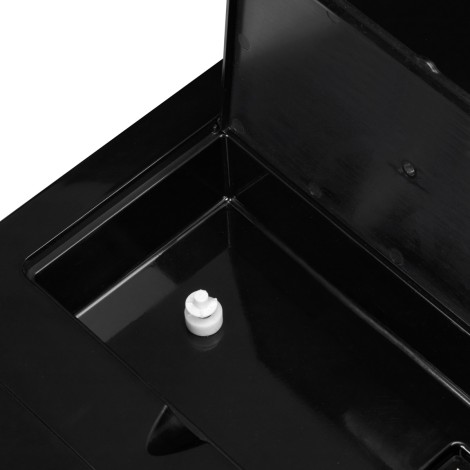

• Built-in 1-litre distilled water tank.
• Preheating and keep-warm functions.
• Self-diagnosis system.

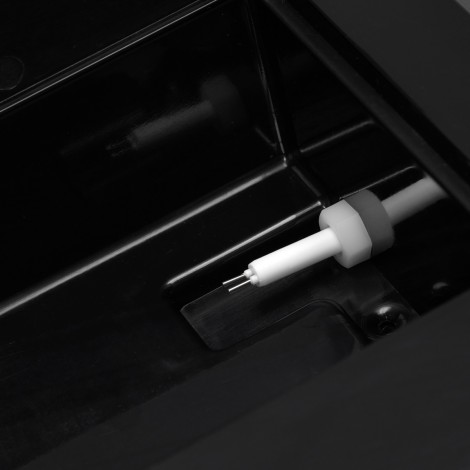

• Water quality sensor.
• Mechanical and electronic double door lock.

Specifications and Warranty

The autoclave has a 3-litre chamber capacity and external dimensions of 24.5 x 29 x 59 cm. It operates at 220-240 V and 2.9 KW power with a frequency of 50 Hz. Maximum working temperature is 137 ℃ and maximum working pressure is 0.24 MPa. Certifications include CE 1023, ISO 13485, and compliance with PN-EN 13060: 2004 + A2: 2010.

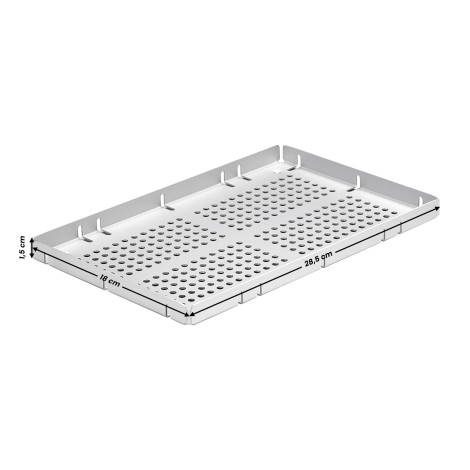

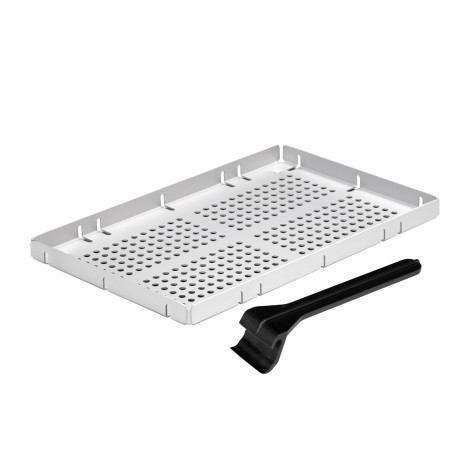

Included accessories are a drain hose, tray, power cord, tray removal holder, English manual, and a technical passport. The autoclave comes with a 24-month warranty extendable by 12 months after a paid technical inspection at an authorised service centre. A service-only door mechanism is located under a cap.

The net weight is 20 kg with packaging weighing 24 kg.

• Chamber capacity: 3 litres.
• Operating power: 2.9 KW, 220-240 V, 50 Hz.
• Max temperature: 137 ℃.
• Max pressure: 0.24 MPa.
• Certifications: CE 1023, ISO 13485, PN-EN 13060: 2004 + A2: 2010.
• Includes drain hose, tray, power cord, removal holder, manual, and technical passport.
• 24-month warranty, extendable by 12 months after authorized inspection.
• Net weight: 20 kg; packaged weight: 24 kg.

Technical specifications

• Brand: LAFOMED
• Model: LFSS03AA LCD
• Medical Class: Class B
• Chamber Capacity: 3 litres
• Chamber Material: 304-grade stainless steel
• External Dimensions: 24.5 x 29 x 59 cm
• Chamber Dimensions: 7.5 x 19 x 32 cm (depth)
• Power: 2.9 KW
• Voltage: 220-240 V
• Frequency: 50 Hz
• Maximum Working Temperature: 137 ℃
• Maximum Working Pressure: 0.24 MPa
• Water Tank Capacity: 1 litre (distilled water)
• Programs: 7 automatic (4 sterilisation, 2 test, 1 drying)
• Drying Time: 1-25 minutes adjustable
• Vacuum Times: 1-10 times adjustable
• Display: LCD with cycle information
• Data Storage: SD memory card slot
• Safety Features: Self-diagnosis system, water quality sensor, double door lock
• Certifications: ISO 13485, CE 1023, PN-EN 13060: 2004 + A2: 2010
• Weight (Net): 20 kg
• Weight (Packaged): 24 kg
• Package Contents: Autoclave, drain hose, tray, power cord, tray removal holder, English manual, technical passport
• Warranty: 24 months standard, extendable by 12 months after paid technical inspection
